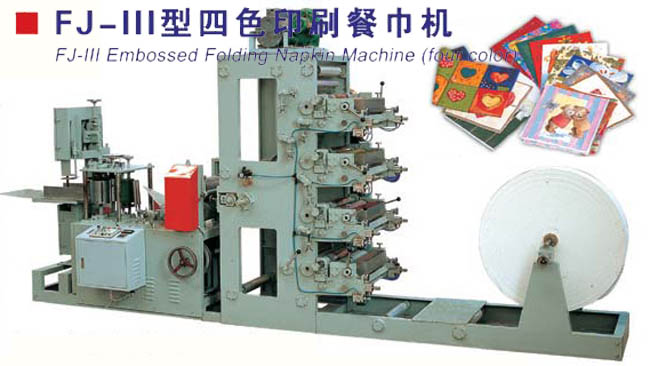

FJ-Ⅲ Embossed Folding Napkin Machine (four color)

Function & Assemble Parts
  1. New design for gripping roller and machine body that make advantages of high speed, stability, low noise and long life..
  2. Automatic web-edge controller.
  3. Equipped with bridge-type drying tube. The hot wind quantity of which can be chosen according the printing size.
  4. With dancer roller tension automatic controller.
  5. *steel to steel embossing.
  6. With band knife auto grinding device(have manual option)
  7. With driving belt for jumbo roll control by pneumation
  8. With one set of air lifted for jumbo roll
  9. With inching.
  10. With auto slow down device before jumbo roll used-up gradually
  11. The flexo 4-color printing unit can change the various printing patterns. Also the high quality anilox roll can guarantee the clear and nice printings on the paper.
  12. With printing roller engagement and disengagement device.




Main Technical Parameter

Sheet size  L*w

210*210, 230*230, 250*250, 275*275, 300*300, 330*330, 400*400, 420*420
Machine’s prices are changed against different sheet size. The size could be specified by customer

Folded shape

1/4  The folded shape(M-fold, N-fold) could be specified by customer

Folded size

105*105, 115*115, 125*125, 135.25*135.25, 150*150, 165*165, 200*200, 210*210

Mechanical speed(Max)

450sheets/min

Converting Web

2-3 ply napkin towel, 18-25g/m3

Main power

4Kw

Heated power

5Kw

Jumbo roll core dia

76.2mm

Machine Dimension

6500mm*1200mm*2800mm

Mechanical weight

3000Kg

Packing Measure

20’container*1(approx) subject to final confirmation
