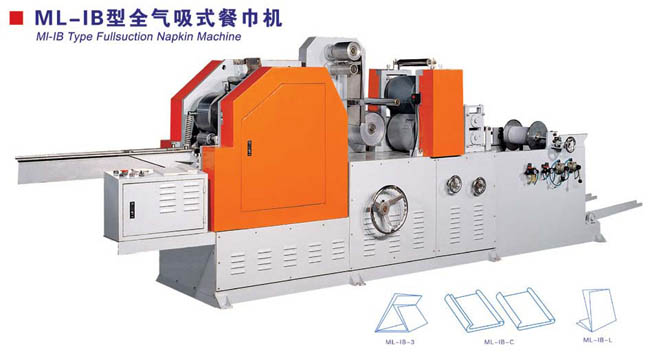

ML-LB Type Full Suction Napkin Machine

Function & Assemble Parts

ML-LB Type Full Suction Napkin Machine adopts vacuum suction technology to produce napkin paper after embossing and folding. The last fold is a little bit longer so that it is easy to be drawn from the box. The machine adopts conversion step less speed regulation technology that the speed of the whole machine is controlled freely with electric monitor following the out coming of paper and auto stop when paper is broken and auto counting folding separation device to have an accurate quantity.


Main Technical Parameter

Model

3-fold napkin machine

c-fold napkin machine

L-fold napkin machine

400*125

240*(90-100)

155*165

Sheet
L*W(mm)

Machine’s prices are changed against different sheet size
(the size can be specified by customer)

Interfold then 3-fold

Interfold the C-fold

Interfold then L-fold

Folded shaper

The folded shape could be specified by customer.

Folded size

150*125

240*(280-330)

120*85

Mechanical speed(max)

600sheets/min

400sheets/min

500sheet/min

Converting web

1 ply napkin towel, 22-40g/m2

Main Power

8.5kw

4kw

8.5kw

Jumbo roll width

420mm

280-330mm

165mm

Jumbo roll dia.(max)

1100mm The size could be specified by customer.

Jumbo roll core dia

76.2mm

Machine Dimension

4200*1200*1600

4500*1200*1600

4500*1200*1600

Mechanical weight

2000kg

Packing Measure

20’container*1(approx.)(subject to final confirmation)
